Why MoE breaks the systolic dream



1. Why MoE breaks the systolic dream (recap, visually)

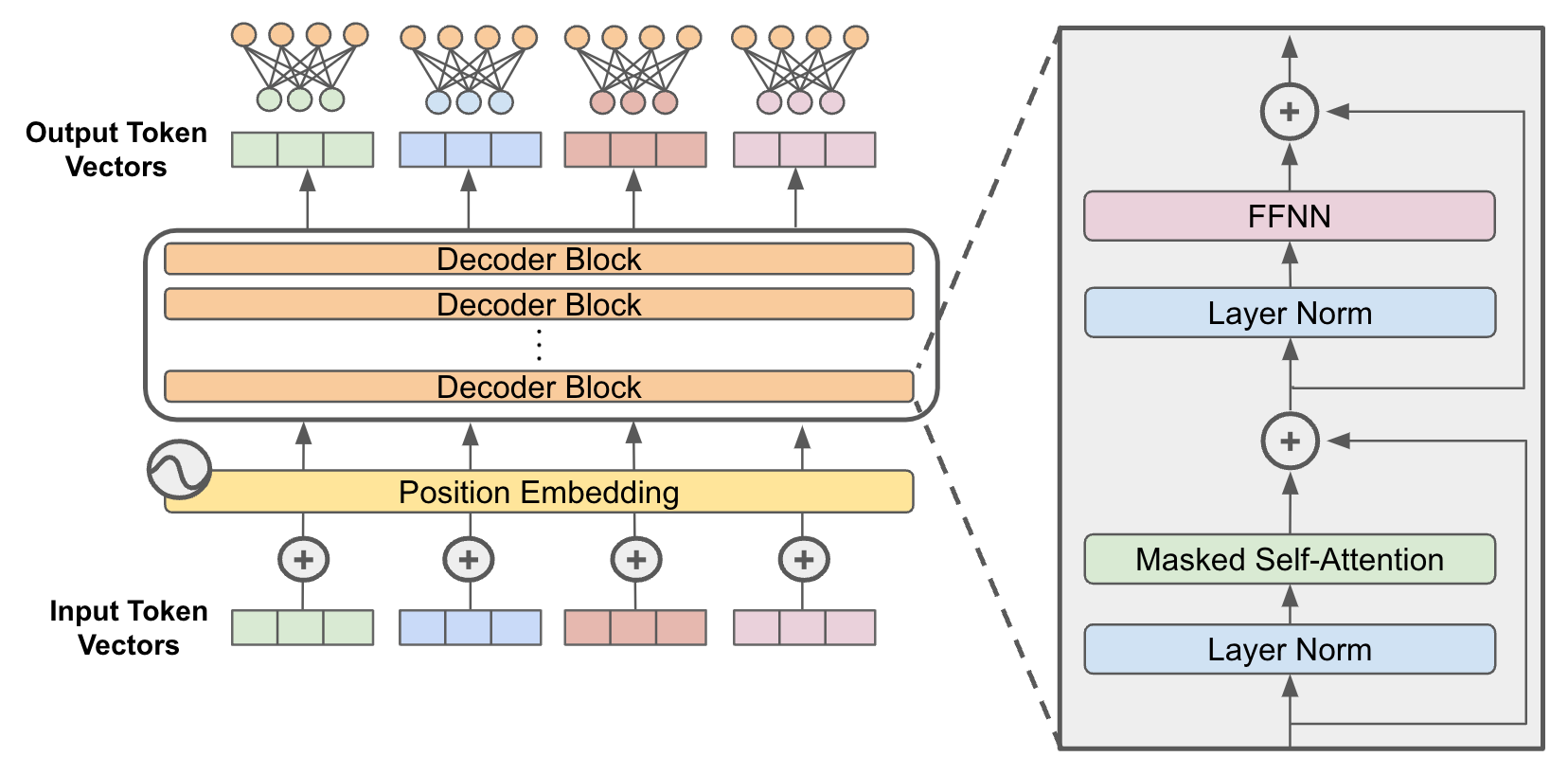

Dense model on TPU (happy path)

• Tokens flow layer → layer

• Nearest-neighbor communication

• Torus topology works beautifully

• Predictable, local traffic

MoE model (the problem)

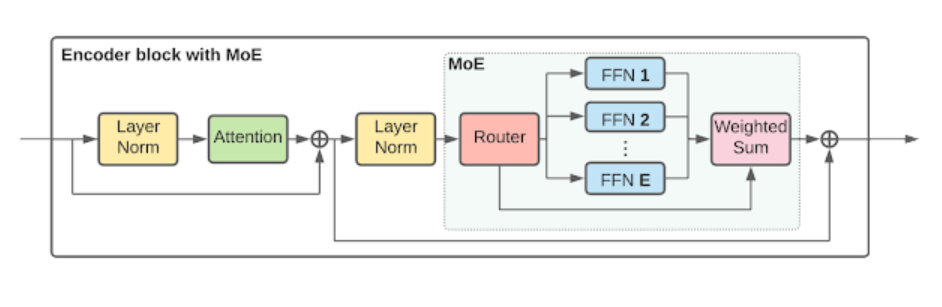

• Router decides expert assignment at runtime

• Tokens scatter to experts across chips

• Requires all-to-all communication

• Traffic ignores torus locality

This violates every assumption systolic arrays are built on:

• Static schedules

• Local movement

• Deterministic timing

---

2. What TPUs actually do today (the workarounds)

2.1 Router on vector units (escape hatch)

• Routing logic runs on VPUs, not MXUs (systolic array)

• This is instruction-driven, not dataflow

• You momentarily abandon the systolic world

👉 This is already an admission:

MoE doesn’t fit cleanly into pure dataflow.

---

2.2 Expert replication (reduce communication)

Instead of:

• Each expert lives on one chip

They do:

• Replicate popular experts across chips

Tradeoff

• ✅ Less all-to-all traffic

• ❌ More memory usage

• ❌ Less parameter efficiency

• ❌ Breaks MoE’s original scaling promise

This is a bandwidth-for-memory swap.

---

2.3 Grouped / local routing (constrain entropy)

• Tokens can only choose experts within a group

• Groups align with topology neighborhoods

Result

• Traffic becomes mostly local

• But routing quality degrades

• Experts become underutilized

This turns MoE into:

“Dense-with-extra-steps”

---

2.4 Overprovision bandwidth and eat the cost

TPU pods throw:

• Massive bisection bandwidth

• Custom optical interconnects

At the problem.

This works at Google scale, but:

• 💸 Very expensive

• ❌ Not elegant

• ❌ Not scalable for customers

---

3. The uncomfortable truth

TPUs did not eliminate the mismatch.
They route around it by temporarily leaving the dataflow model.

In other words:

Phase	Execution model
Dense layers	Systolic dataflow (MXU)
Router	Instruction-driven (VPU)
Expert dispatch	Network collectives
Expert compute	Systolic again

This is hybrid execution, not pure dataflow.

---

4. Why this matters for Nvidia / Groq-style inference

Here’s the key contrast:

TPU philosophy

• Dataflow until it breaks

• Then fall back to vector units + collectives

Groq-style philosophy

• If it’s dynamic, don’t pretend it’s dataflow

• Make routing explicit

• Schedule communication statically when possible

• Optimize for inference, not training

And Nvidia:

• Owns NVLink

• Owns collective primitives

• Owns hybrid execution already

Meaning:

Nvidia is structurally better positioned for MoE-heavy inference than pure systolic designs.

---

5. Why MoE is fundamentally hostile to systolic arrays

This is the core reason no one has “solved” it:

Systolic assumption	MoE reality
Fixed data paths	Dynamic routing
Local communication	Global shuffles
Static schedule	Runtime decisions
Uniform compute	Sparse, skewed load

You can mitigate each — but not eliminate all simultaneously.

---

6. Bottom line (very precise)

TPUs have not found a clean architectural solution to MoE.
They rely on hybrid execution, expert replication, constrained routing, and brute-force bandwidth — all of which erode the original benefits of systolic dataflow.

That’s why:

• MoE works best when inference dominates

• With explicit scheduling

• And fabric-first designs (NVLink-style) instead of topology-first ones (torus)

---

One-sentence takeaway

MoE doesn’t break TPUs — it forces them to stop being TPUs for part of the time.
